• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Cruise control, steering wheel-mounted
• Door locks, power

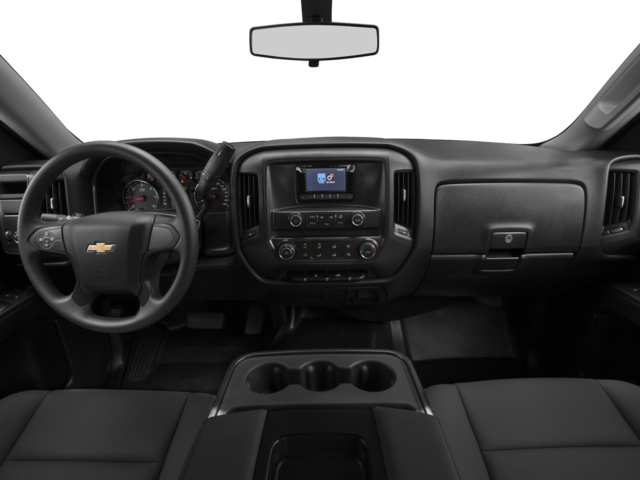

• Driver Information Center, 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
• Floor covering, Graphite-colored rubberized-vinyl

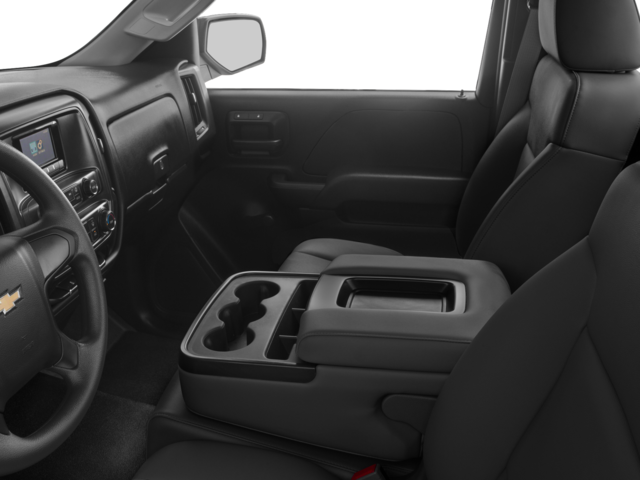

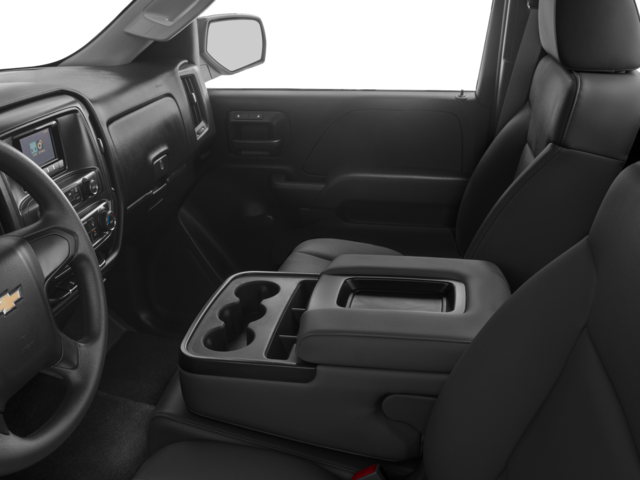

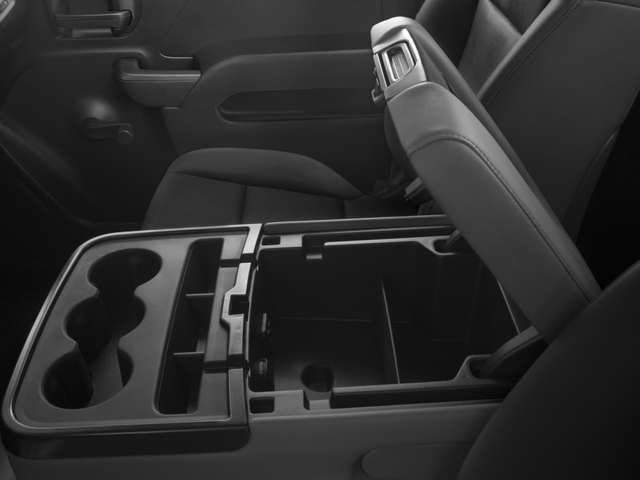

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (Upgradeable to (AZ3) front 40/20/40 split-bench seat.)
• Steering column, manual Tilt-Wheel

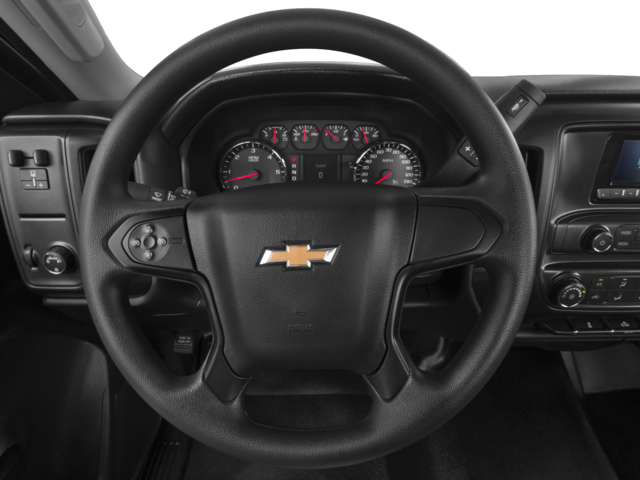

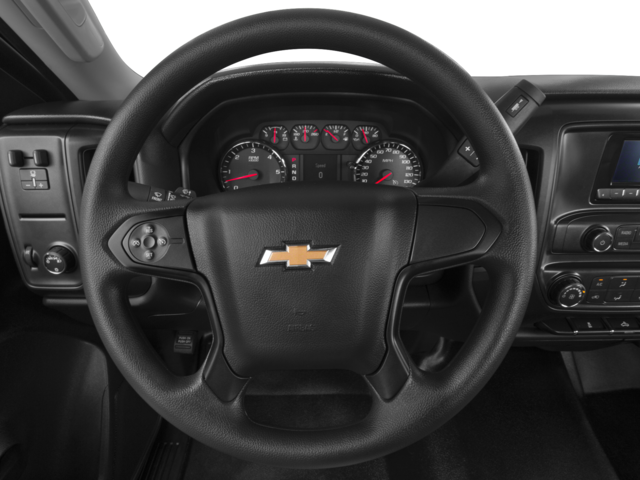

• Steering wheel

• Air cleaner, high-capacity
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc with DuraLife brake rotors
• Differential, heavy-duty locking rear
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Pickup box
• Recovery hooks, front, frame-mounted, black
• Steering, Recirculating Ball with smart flow power steering system
• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar
• Transfer case, with floor-mounted shifter (Included with 4WD models only.)

• Daytime Running Lamps with automatic exterior lamp control
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Tire Pressure Monitoring System (does not apply to spare tire)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

SUSPENSION PACKAGE, OFF-ROAD, FOR BASE DECOR VEHICLES

• Includes Z71 Off Road Suspension components
• twin-tube Rancho brand shocks and (NZZ) Underbody Shield. Does not include any "Z71" appearance features or (JHD) Hill Descent Control.

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

PICKUP BOX

• (STD)

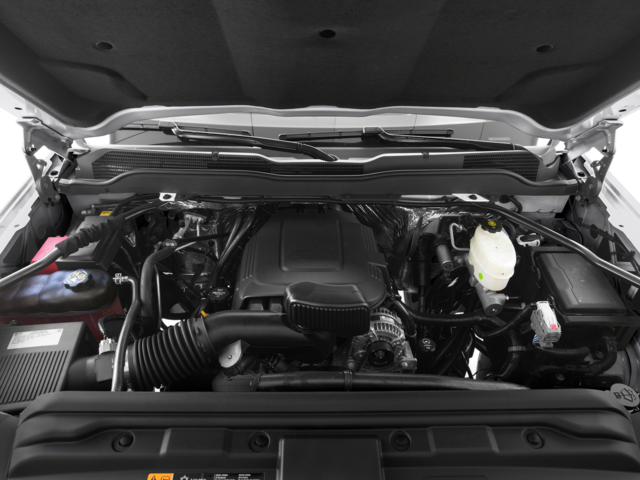

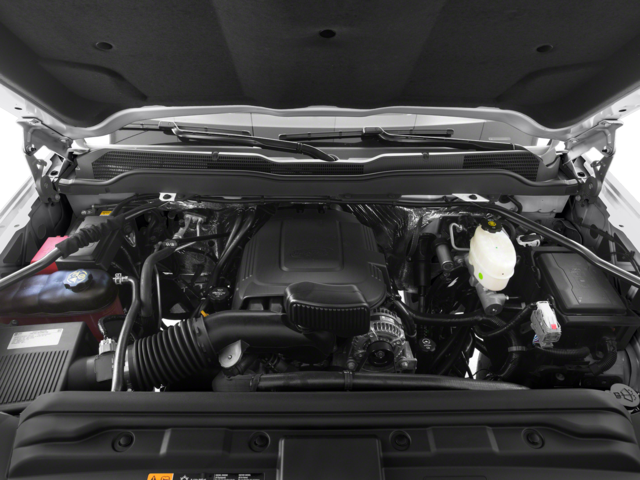

ENGINE, VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI, E85-COMPATIBLE, FLEXFUEL

• capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm
• 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) (STD)

Z71 PACKAGE, OFF-ROAD

• includes twin tube Rancho brand shocks
• (JHD) Hill Descent Control
• (NZZ) underbody shields. Also includes brushed metal Z71 door sill plate
• unique Z71 gauge cluster
• unique finish interior trim plates
• unique lower bumper appearance
• unique grille design with Z71 badge and Z71 pickup box decals

UNDERBODY SHIELD, FRAME-MOUNTED SHIELDS

• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

• SUMMIT WHITE
• ENGINE BLOCK HEATER
• REMOTE KEYLESS ENTRY Includes (A91) remote locking tailgate.)
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 4.10 RATIO
• LICENSE PLATE KIT FRONT
• WHEELS 17" (43.2 CM) MACHINED ALUMINUM includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel.
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• 6-SPEAKER AUDIO SYSTEM
• TRAILERING EQUIPMENT Trailering hitch platform 2.5" with a 2.0" insert for HD 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps backup lamps right and left turn signals an electric brake lead battery and a ground The trailer connector also includes the 4-way for use on trailers without brakes - park brake/turn lamps Includes (JL1) trailer brake controller.
• SUSPENSION PACKAGE OFF-ROAD FOR BASE DECOR VEHICLES Includes Z71 Off Road Suspension components twin-tube Rancho brand shocks and (NZZ) Underbody Shield. Does not include any "Z71" appearance features or (JHD) Hill Descent Control.
• GVWR 9500 LBS. (4309 KG)
• WINDOWS POWER WITH DRIVER EXPRESS UP AND DOWN AND EXPRESS DOWN ON ALL OTHER WINDOWS
• TIRE SPARE LT265/70R17E ALL-TERRAIN BLACKWALL
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• REMOTE LOCKING TAILGATE
• PICKUP BOX (STD)
• PAINT SOLID
• SEAT ADJUSTER DRIVER 10-WAY POWER
• WHEELS 17" X 7.5" (43.2 CM X 19.1 CM) FULL-SIZE STEEL SPARE.

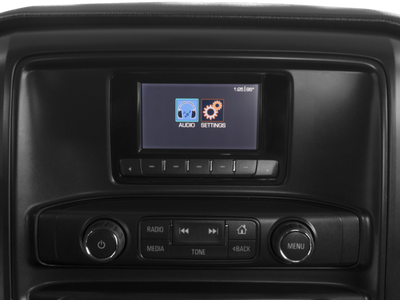

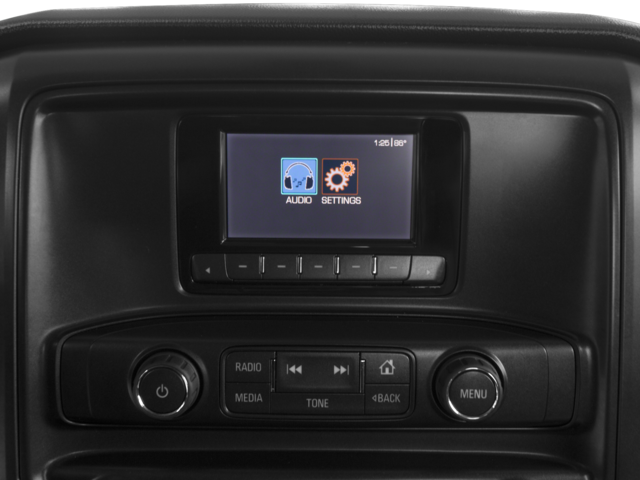

• AUDIO SYSTEM CHEVROLET MYLINK RADIO 7" DIAGONAL COLOR TOUCH SCREEN AM/FM STEREO with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones; featuring Android Auto and Apple CarPlay capability for compatible phone (Includes (UQ3) 6-speaker audio system (UE1) OnStar (VV4) OnStar 4G LTE Wi-Fi Hotspot.)
• DARK ASH WITH JET BLACK INTERIOR ACCENTS CLOTH SEAT TRIM
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) (STD)
• Z71 PACKAGE OFF-ROAD includes twin tube Rancho brand shocks (JHD) Hill Descent Control (NZZ) underbody shields. Also includes brushed metal Z71 door sill plate unique Z71 gauge cluster unique finish interior trim plates unique lower bumper appearance unique grille design with Z71 badge and Z71 pickup box decals
• TRANSFER CASE ELECTRONIC SHIFT WITH ROTARY DIAL CONTROLS
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE (includes driver's side spotter mirror)
• UNDERBODY SHIELD FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• TIRES LT265/70R17E ALL-TERRAIN BLACKWALL
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER. Available in cloth or leather. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar lockable storage compartment in seat cushion and storage pockets. Includes (AG1) driver 10-way power seat-adjuster
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Split Bench Seat
• Adjustable Steering Wheel
• Power Door Locks
• Cruise Control
• A/C
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Passenger Air Bag On/Off Switch
• Telematics
• Requires Subscription
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): 3640
• Curb Weight - Rear (lbs): 2427
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 21100
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1450
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14500
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3625
• Maximum Trailering Capacity (lbs): 14500
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 4400
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.98 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QXT
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QXT
• Rear Tire Order Code: QHQ
• Spare Tire Order Code: ZXT
• Front Tire Size: LT265/70R17E
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT265/70R17E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: LT265/70R17E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Aluminum
• Front Wheel Material: Steel
• Rear Wheel Material: Aluminum
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 16.1
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 45.9
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 133.60
• Length, Overall w/o rear bumper (in): 224.43
• Width, Max w/o mirrors (in): 80.12
• Height, Overall (in): 77.76
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 117.10
• Cab to Axle (in): 55.16
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.75
• Ground Clearance, Rear (in): 9.10
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.80
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.60
• Cargo Box Width @ Wheelhousings (in): 51.03
• Cargo Box (Area) Height (in): 21.22
• Tailgate Width (in): 62.20
• Cargo Volume (ft³): 76.3
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 61.22
• Front Hip Room (in): 61.22
• Summary

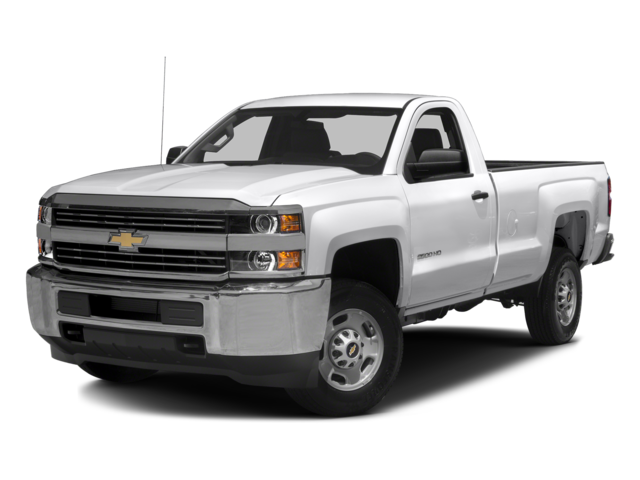

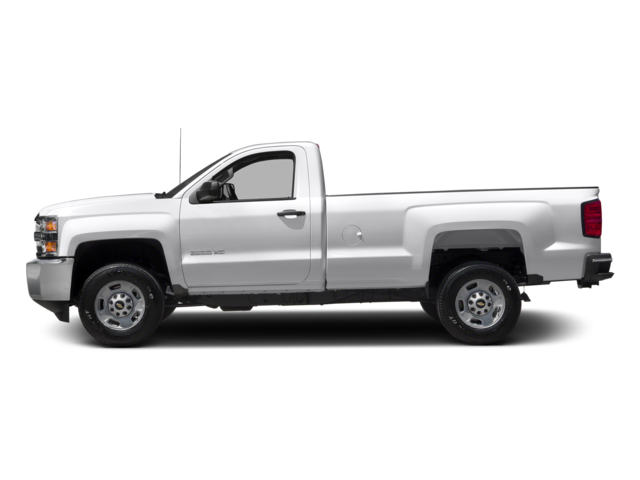

• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Reg Cab Pickup
• Body Code: E63
